When you finish a ring binder or calendar, a small positioning error can spoil work that has already passed printing, trimming, and assembly. A reinforced opening may sit too close to a crease. A calendar hanging hole may miss the centerline. An eyelet can look neat while trapping pages that should turn freely.
You should choose eyeletting machines for ring binders and calendars based on the finished product, not simply because the material is paper. Your hole pattern, material layers, and hardware function determine what the setting station must accomplish.
This guide helps you specify that station for stationery production. It explains how to separate eyeletting from mechanism riveting, control registration on covers and calendar components, and evaluate samples before choosing a configuration. The goal is a repeatable attachment or reinforced opening that functions without damaging the surrounding paperboard.
Identify the Operation Before You Specify the Machine
Start by marking the eyelet locations on your approved drawing and describing what each one does. You might need to reinforce an opening in a binder cover, provide a hanging point in a calendar backing or join layers that are intended to remain permanently together.
These are different tasks. You should not group every metal fastener in a stationery product as an eyeletting operation. In particular, mounting a ring mechanism to a binder cover may require rivets and a suitable riveting process. An eyelet setting machine is not automatically a ring-mechanism assembly machine.
If your design uses a tubular fastener to secure a mechanism, send the fastener and mechanism drawings to the supplier. You need confirmation of the actual fastening process, forming tools, access and support arrangement. Similar-looking hardware does not establish interchangeability.
Keep calendar binding separate too. Punching a row of holes for wire binding and closing the wire are not the same operation as setting an eyelet in a hanging hole. Your production plan should identify which station performs each task.

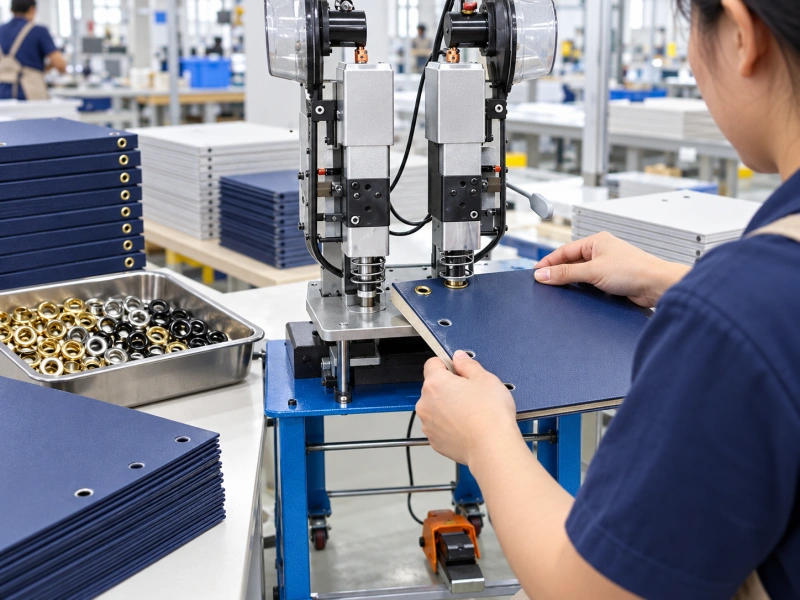

Plan Binder Eyeletting Around the Cover Construction
Reinforced Openings in Covers and Dividers
For an eyeletted opening in a binder cover or divider, establish how the opening will be used. Check the clearance needed for a ring, cord or other fitting, and verify that the hardware does not obstruct opening or closing the product.
Do not assume that loose-leaf pages need eyelets simply because they go into a ring binder. Your ordinary page holes may remain unreinforced. Reserve eyeletting for locations that your product design actually calls for, then check those locations against the real binder geometry.
If your design requires a specialized grip-hole or slotted reinforcement, treat it as a separate tooling and equipment inquiry. You cannot infer that a round-eyelet station will form or set specialized binder fittings.
Wrapped Board and Laminated Covers
A binder cover can include board, an outer wrap, adhesive, an inner lining and a surface laminate. Specify that whole construction. The same nominal board thickness can produce different results when the wrap stretches, the adhesive is insufficiently cured or the lining separates near the opening.
Run trials after the same bonding and curing stage you use in production. If you trial a dry board coupon but later set through a freshly wrapped cover, you have changed the material condition that the tools encounter.
Inspect the outer wrap for wrinkles, whitening and lifted edges around the flange. On the inside, check that the formed barrel or backing component does not create an objectionable projection. You need a result that suits both the appearance and the handling of the finished binder.
Creases and Moving Cover Panels
Show the supplier the cover in both its flat processing state and its assembled form. A location that is easy to reach on a flat blank may become inaccessible after folding or fitting the mechanism.
Check the flange footprint against creases and spine transitions. If the setting bridges a bending zone, it can interfere with movement or concentrate damage in the cover. Your approved drawing should define a suitable relationship to the crease rather than leaving the operator to judge it.
Open and close a completed trial binder. Confirm that the eyelet, mechanism and stored sheets do not interfere with each other. A flat sample cannot demonstrate that clearance.
Distinguish Calendar Hanging Holes From Page Binding
For a wall calendar, first identify which component carries the hanging load. Your eyelet might pass through a backing board, a header or another approved component. You need to know which layers belong in the setting and which must remain free.
If you permanently fasten the calendar pages together with eyelets at the wrong location, you may prevent them from turning or being removed as intended. Do not qualify a stack solely because the machine can press through it. Check the page-turning sequence in the assembled product.

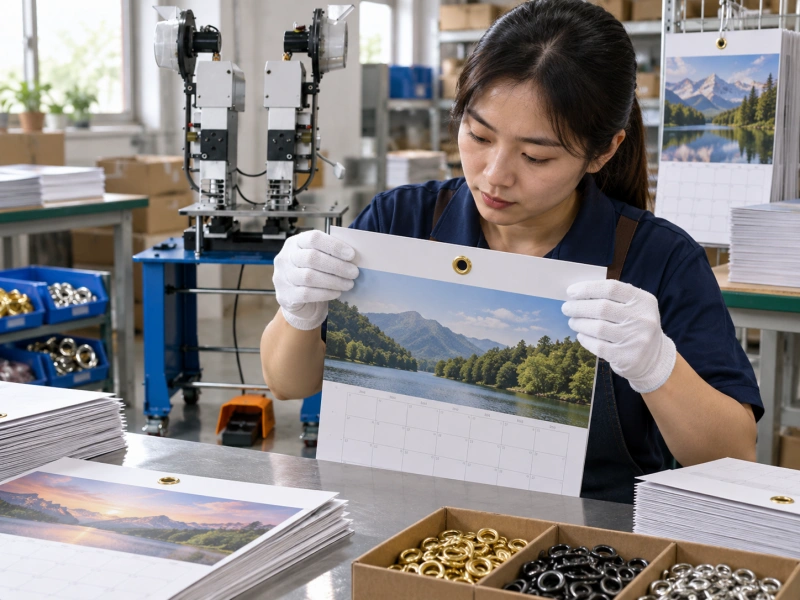

For a calendar with a reinforced hanging opening, confirm the finished opening with the intended hook or fitting. Inspect the contact area inside the eyelet, not just its nominal diameter before setting. Forming can change the usable opening.
If your calendar uses a wire hanger, you may not need an eyelet at all. Choose the finishing process from the approved construction rather than adding hardware to every calendar format.
Desk calendars need their own review. The stand, fold lines and binding arrangement may govern access more than material thickness does. If the design includes eyeletted joints or attachment points, trial those in the assembled stand and check that they do not alter its intended movement.
Specify Thickness and Layer Count Separately
When you inquire about a paper eyelet machine, do not describe the job only as a number of sheets. Sheet count leaves out the paper grade, board backing, and any coating or laminate. Two stacks with the same count can differ in thickness and compression behavior.
Record the material grade, basis weight where relevant, measured stack thickness and the exact layer sequence at each eyelet. Include reinforcement patches and backing components. If your product has different stacks at different positions, identify each one.
Measure the material in a consistent way so your supplier can interpret the figures. Paperboard and multilayer stacks can compress under measurement pressure; an unexplained thickness value may not represent the condition during setting.
Test the approved extremes, including the thinnest stack. A setup that forms an acceptable eyelet through the thickest cover can over-compress a thinner version. Your process may need separate hardware or settings instead of one recipe for the entire range.
Include grain direction and normal material conditioning in the trial specification when they affect your board construction. You should investigate edge splitting or cover distortion with production stock, not assume that every paperboard grade behaves identically.
Choose Hole Preparation From Sample Evidence
You may consider a process that pierces and sets in one operation, or one that sets into a separately prepared opening. Your machine, eyelet geometry and material construction determine which route is suitable.
A self-piercing eyelet is part of a particular hardware-and-tool system. You should not assume that any small eyelet can cut through every cover or calendar stack. Ask the supplier to identify the proposed process and demonstrate it on representative samples.
With laminated covers, inspect whether piercing tears the facing or lifts the laminate. With multiple layers, check that the opening is aligned through the full stack rather than clean only on the visible face.
If you pre-punch, examine the opening before setting. Record its diameter, location and edge condition. Remove loose waste that could become trapped under the flange or scratch the printed surface.
Keep hole preparation and setting registration coordinated. You should not use the setting tools to force a poorly aligned stack into place. If a pre-punched batch arrives with the wrong pattern, contain it and review the disposition instead of creating a second opening beside the first.
Match Small Hardware to the Finished Stack
Start from the eyelet drawing and the function of the finished opening. Confirm barrel dimensions, flange size, material and finish. Specify whether your approved system uses a washer or another backing component; not every stationery eyelet arrangement uses the same construction.
You need a formed result that retains the hardware without cutting or crushing the surrounding layers. Excess barrel length can produce an unsuitable rear profile, while insufficient length may leave inadequate formation. You should qualify the geometry with the forming tools rather than apply a universal allowance.
For the basic component checks, review how to match eyelet size, washer size and die sets. Keep the stationery trial focused on your finished cover or calendar stack.
Check the inside of the opening for sharp or irregular formed edges. If a cord or hook contacts that surface, include it in the functional trial. For binder products, also check whether the rear setting catches sheets or marks the adjacent cover when you close it.
Agree on the visual standard with your customer. A premium printed calendar may have different requirements for flange marking and finish variation from a functional office binder. Use an approved physical sample where written appearance limits alone are difficult to interpret.
Register the Pattern to the Right Product Features
Define the datum for every pattern. For a calendar hanging point, you may need the hole centered across the finished width with a specified distance from the trimmed edge. For a binder cover, you may need a relationship to a crease, mechanism feature, or finished edge.
Choose that relationship from the drawing, then design the stops or fixture around it. Locating from an unfinished blank edge can create a wrong result if you trim the product later. Conversely, positioning from printed artwork may be unsuitable when the mounting feature is controlled by the cut geometry.
For a centered hanging hole, check the centerline on each approved calendar width. A fixed side stop that works for one format does not automatically center another. Your changeover instructions should identify the locator position or fixture for each SKU.
For paired eyelets, measure the distance between the centers as well as the distance to the reference features. Two individually plausible edge offsets can still produce the wrong pair spacing if the blank is skewed.
Control front-to-back orientation. A wrapped cover or asymmetric calendar header can look similar after you turn it over. Use a suitable fixture or clear orientation feature to prevent a mirrored pattern and the flange appearing on the wrong face.
Hold the Work Without Disturbing the Layers
Your locating arrangement must keep the product square without creasing it. Evaluate rear and side stops, support surfaces and any proposed holding device with the actual cover finish. Excessive holding pressure can mark a laminated face before the eyelet is set.
For a multilayer calendar component, prepare the layers in the correct order and keep them aligned during loading. Include a reliable count or identity check upstream when missing pages are a realistic risk. An eyelet can secure an incomplete stack just as neatly as a complete one.
Check the machine access with the largest flat cover and the most awkward assembled sample. Include the space needed for a mechanism, fold or stand if it is present at the setting stage.
Use throat depth and workpiece access checks to evaluate the farthest eyelet location. Do not judge access only from the finished product dimensions.
Keep support surfaces free of punched waste and hardware fragments. Paper dust or a small chip underneath a glossy cover can leave a visible impression. Trial the way you transfer finished pieces too, especially when a rear setting could rub against the next printed face.
Compare Single-Position and Paired Setting Arrangements
For a single hanging point or varied short-run work, a single-position station may give you a straightforward layout. For repeated paired patterns, you may consider a two-position arrangement, provided the configuration supports your required spacing and access.
Do not assume that a paired machine offers any spacing you need. Ask about the available range, adjustment method and repeatability with your material. Check whether both settings produce the same acceptable result at the thinnest and thickest approved stacks.
If you create a pair with two successive operations, assess how you move the work between them. Indexing against a defined fixture can be more dependable than repositioning by eye. Include that movement in the production trial.
Separate automatic hardware feeding from automatic workpiece handling in the quotation. A machine that feeds eyelets may still require you to load, locate and unload each cover manually. Washers, if required, may involve a separate feeding arrangement.
Compare accepted finished products per shift under your actual job mix. Include layer preparation, loading, inspection, and format changes. You cannot calculate dependable output from the setting cycle alone.
Qualify the Process on Finished Product Samples
Send samples that represent the product you sell. For binders, include the wrapped or laminated cover, the relevant hardware and a completed assembly. For calendars, include the actual hanging component, specified layers and the intended hook or fitting.
Follow the sample preparation guide for eyelet machine trials so each construction and eyelet location is identified clearly.
Agree what the supplier must record: hole-making route, eyelet code, backing component where used, tool identification, and machine configuration. Ask for samples from the approved range rather than a single favorable piece.
Inspect both faces and, where needed, a sectioned sacrificial sample. Look for hidden separation in the wrapped board or incomplete formation beneath the rear surface. Keep qualification samples separate from saleable production.
For calendars, test the hanging arrangement with the complete approved product. Agree the load, duration, handling cycles and environmental conditions with the responsible customer. A brief hand pull does not demonstrate performance over the intended display period.
For binders, perform the relevant opening, closing and fitting checks. If the eyelet acts as a permanent joint, assess that joint against its intended duty. Keep mechanism attachment approval separate when riveting is involved.
Set Acceptance Criteria for Stationery Production
Your first-article inspection should combine location, formation, and function. Define the permitted hole-position variation from the drawing, plus the method for checking paired spacing or a calendar centerline.
State the acceptable condition around the flange and on the rear face. Include tears, creasing, laminate lift, lining separation and visible tool marks. Where the eyelet contacts a fitting, verify that the finished opening accepts it without unacceptable interference.
Do not impose one generic “no rotation” rule on every eyelet. Define acceptable movement according to its function. Equally, do not approve loose hardware because the flange looks correct. Your functional criteria need to address retention and use.
Decide the sampling and reaction rules within your quality plan. Inspect after relevant changes in material, hardware, tooling or locator setup, and retain an approved reference for comparison. You should not transfer a qualified recipe to another cover construction without reviewing the difference.
Keep Seasonal and Mixed-Format Jobs Identifiable
Calendar campaigns can involve the same format with different artwork, language or year. Binder jobs may share a cover size while using different mechanisms or eyelet patterns. Keep the job identity visible through setting and inspection so a correct process does not finish the wrong product.
Label your fixtures and setup records by product code and revision. Include the processing face, layer sequence and reference edge. At changeover, remove leftover covers and hardware before bringing the next job to the station.
Count accepted finished assemblies rather than eyelets consumed. If you track rejects, distinguish missing layers, wrong location, formation defects, and cosmetic damage. Each category points to a different part of the process.
Stack completed pieces so projecting hardware cannot mark neighboring printed faces. Test separators or stack orientation with your actual finished product, and confirm that your packing method preserves the approved appearance.
Prepare a Clear Machine Inquiry
To evaluate a stationery configuration, give QC Machinery a drawing and a representative sample package. Include:
- Your binder or calendar construction and the function of each eyelet.
- Your material grades, layer sequence and measured thickness range.
- Your eyelet drawings and any approved washers or backing components.
- Your hole pattern, datums, positioning limits and processing orientation.
- Your largest workpiece and any fitted mechanism, fold or stand present during setting.
- Your batch sizes, format changes, and required finished-product output.
- Your appearance limits and finished-product test requirements.
Ask for a quotation that identifies the proposed operation and what still needs sample confirmation. If your project also includes mechanism riveting or wire binding, list those as separate operations so the equipment scope remains clear.
FAQ
Can You Use One Paper Eyelet Machine for Binders and Calendars?
You may be able to use one configuration for both, but you need to qualify each construction, hardware combination, and positioning arrangement. Confirm access and the approved thickness range rather than assuming that the shared use of paper-based materials makes one setup universal.
Can an Eyeletting Machine Attach a Ring Mechanism?
You need confirmation of the specified fastener and forming process. Your mechanism may require riveting rather than eyeletting. Send the mechanism assembly drawing and fastener samples before selecting equipment.
Should You Eyelet All the Pages of a Calendar Together?
Only if that permanent joint belongs in your approved design. You must preserve the intended page-turning or removal function. A hanging eyelet through a backing component is different from permanently fastening the calendar pages together.
How Many Paper Sheets Can You Set in One Operation?
You cannot establish capacity from sheet count alone. Specify the paper grade, complete layer construction and measured thickness, then obtain results for the proposed hardware and machine. Do not apply another machine model’s published sheet capacity to your quotation.
How Do You Keep Calendar Hanging Holes Centered?
Define the centerline from the finished width and use a qualified locator setup for each format. Check the first article after changing widths, and control skew and orientation during loading.
Choose the Stationery Process From the Actual Product
You need an eyeletting process that fits the cover, header or joint you intend to manufacture. Define the operation first, qualify the hardware on the complete material stack and register the pattern to the product features that matter.
Send QC Machinery your binder or calendar drawings and finished-construction samples for a configuration review. You can then compare a clearly defined process instead of assuming that a general paper eyelet machine will perform every stationery finishing operation.
